首頁臺產晶振 AKER晶振電腦主板晶振,CTP3-32.768-12.5-20-R,AKER安碁時鐘晶振

電腦主板晶振,CTP3-32.768-12.5-20-R,AKER安碁時鐘晶振

產品型號：16465049
頻率：32.768KHz
尺寸：8.0x3.8mm

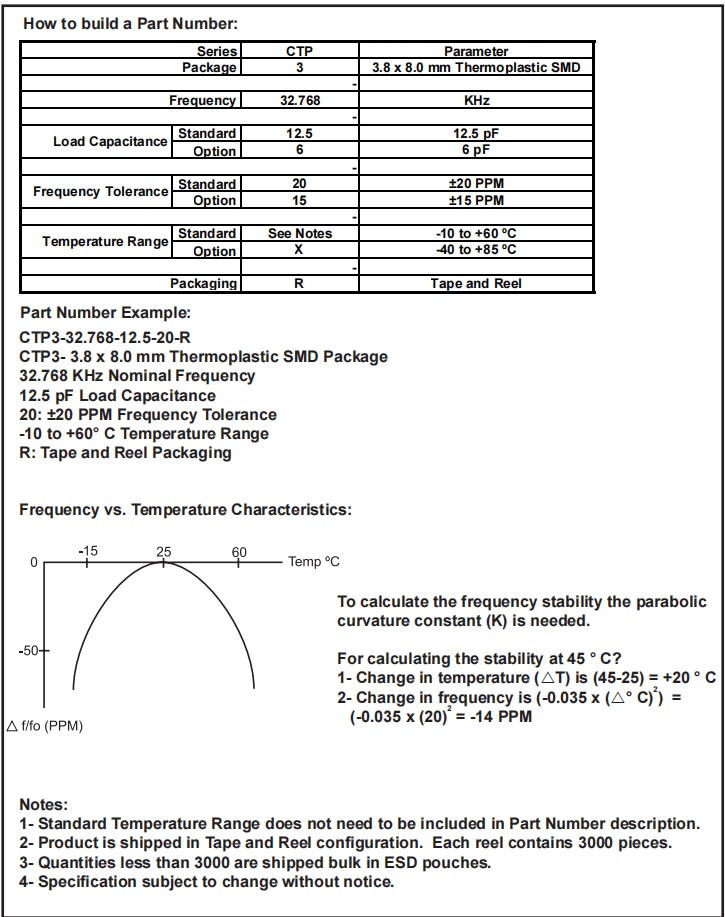

產品介紹：電腦主板晶振,CTP3-32.768-12.5-20-R,AKER安碁時鐘晶振,8038mm晶振,游戲機晶振，AKER晶振，安碁晶振，型號：CTP3系列晶振，編碼為：CTP3-32.768-12.5-20-R，頻率為...

電腦主板晶振,CTP3-32.768-12.5-20-R,AKER安碁時鐘晶振,8038mm晶振,游戲機晶振，AKER晶振，安碁晶振，型號：CTP3系列晶振，編碼為：CTP3-32.768-12.5-20-R，頻率為：32.768KHz，小體積晶振尺寸：8.0x3.8mm，四腳貼片晶振，石英晶振，無源晶振，SMD晶振，音叉晶體，石英晶體諧振器，無鉛晶振，12.5pF標準負載電容，±20PPM頻率公差，-10至+60°C溫度范圍。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。應用于：通訊設備，鐘表晶振，無線模塊，藍牙模塊，物聯網，智能手機，電腦主板，游戲機設備，電話機，時鐘晶振，智能家居，儀器儀表設備等應用。

電腦主板晶振,CTP3-32.768-12.5-20-R,AKER安碁時鐘晶振,8038mm晶振,游戲機晶振,參數表

Nominal Frequency

32.768

KHz

Frequency Tolerance at 25º C

Standard

±20

PPM

Optional

±15

Aging

±3 (first year)

Turnover Temperature

25 ±5

º C

Temperature Coefficient

-0.035 ± 0.008 PPM/Δ ºC²

Temperature Range (Operating)

Standard

-10 to +60

Optional

-40 to +85

Temperature Range (Storage)

-55 to +125

Equivalent Series Resistance

K Ohm Max

Load Capacitance

Standard

12.5

Optional

6.0

Shunt Capacitance

1.5

pF Typ

Motional Capacitance

3.0

fF Typ

Drive Level

1.0

uW Max

Insulation Resistance

500 at at 100 Vdc ± 15 Vdc

M Ohm Min

Quality Factor

70000

Typ

Capacitance Ratio

450

Resistance to Shock

±5 PPM maximum offset from 75 cm drop
test in all axes on to a hard surface.

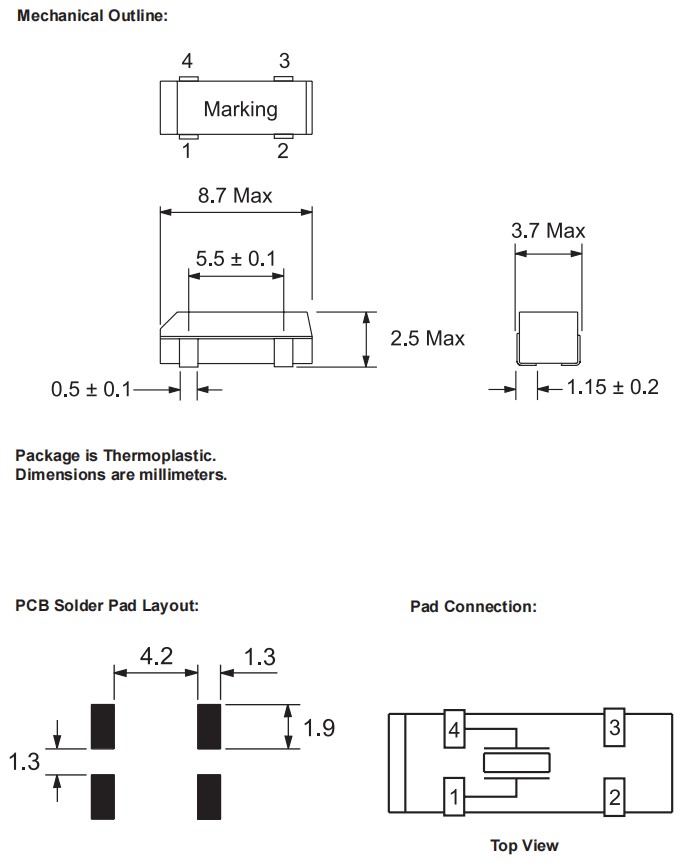

電腦主板晶振,CTP3-32.768-12.5-20-R,AKER安碁時鐘晶振,8038mm晶振,游戲機晶振,尺寸圖

產品編碼	晶振廠家	描述	系列	頻率
C3E-16.000-18-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 18PF SMD	C3E	16 MHz
C3E-20.000-12-3030-X-R	Aker安碁	CRYSTAL 20.0000MHZ 12PF SMD	C3E	20 MHz
C3E-16.000-12-3030-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-25.000-18-3030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-18-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-18-2030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-8-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-25.000-8-1010-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-25.000-8-1520-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-16.000-12-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-32.000-10-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-12.000-8-1520-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-32.000-12-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-25.000-8-1015-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-12.000-18-3030-X-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-12-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 12PF SMD	C3E	25 MHz
C3E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C3E	25 MHz
C3E-24.000-8-1015-R	Aker安碁	CRYSTAL 24.0000MHZ 8PF SMD	C3E	24 MHz
C3E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-32.000-12-1530-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-12.000-8-1010-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-16.000-8-1015-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
C3E-32.000-10-1015-R	貼片晶振	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-24.000-12-1530-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-12-3030-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-18-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 18PF SMD	C3E	24 MHz
C3E-20.000-10-1530-X-R	Aker安碁	CRYSTAL 20.0000MHZ 10PF SMD	C3E	20 MHz
C3E-25.000-8-1530-X-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-24.000-12-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-10-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-16.000-12-1015-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-40.000-10-1015-X-R	Aker安碁	CRYSTAL 40.0000MHZ 10PF SMD	C3E	40 MHz
C3E-32.000-8-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C3E	32 MHz
C3E-32.000-10-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-32.000-12-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-8.000-10-3030-R	Aker安碁	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz
C3E-8.000-10-3030-X-R	Aker安碁	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz
C3E-8.000-18-3030-X-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-18-3030-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-16.000-12-1015-X-M	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C5S-26.000-16-1010-R	Aker安碁	CRYSTAL 26.0000MHZ 16PF SMD	C5S	26 MHz
C5S-8.000-18-3030-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C5S	8 MHz
C3E-24.000-9-1010-R	Aker安碁	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz
C3E-12.000-12-1020-X-R	Aker安碁	CRYSTAL 12MHZ 12PF SMD	C3E	12 MHz
C3E-12.000-18-1020-X-R	Aker安碁	CRYSTAL 12MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-20-1015-X-R	Aker安碁	CRYSTAL 25MHZ 20PF SMD	C3E	25 MHz
C3E-24.000-9-1015-X-R	Aker安碁	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz
C3E-16.000-9-1015-X-R	Aker安碁	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz
C3E-8.000-20-1020-R	Aker安碁	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz
C3E-8.000-18-1020-X-R	Aker安碁	CRYSTAL 8MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-8-1015-R	Aker安碁	CRYSTAL 8MHZ 8PF SMD	C3E	8 MHz
C3E-12.000-8-2050-X1-R	Aker安碁	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C3E X1	12 MHz
C3E-16.000-10-3050-X1-R	Aker安碁	CRYSTAL 16MHZ 10PF SMD AEC-Q200	C3E X1	16 MHz
C3E-20.000-8-3050-X1-R	Aker安碁	CRYSTAL 20MHZ 8PF SMD AEC-Q200	C3E X1	20 MHz
C5S-12.000-18-1020-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C5S	12 MHz
C3E-8.000-18-1020-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz
C3E-8.000-12-1020-M	Aker安碁	CRYSTAL 8MHZ 12PF SMD	C3E	8 MHz
C3E-16.000-10-2050-X1-R	Aker安碁	CRYSTAL 10MHZ 10PF SMD AEC-Q200	C3E X1	10 MHz
C3E-30.000-8-2050-X1-R	Aker安碁	CRYSTAL 30MHZ 8PF SMD AEC-Q200	C3E X1	30 MHz
C7S-12.000-12-3030-X-R	Aker安碁	CRYSTAL 12MHZ 12PF SMD	C7S	12 MHz
C7S-8.000-18-1020-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C7S	8 MHz
C7S-8.000-18-1030-X-R	Aker安碁	CRYSTAL 8MHZ 18PF SMD	C7S	8 MHz
C3E-8.000-10-1020-M	Aker安碁	CRYSTAL 8MHZ 10PF SMD	C3E	8 MHz
C3E-24.576-12-3030-X-R	Aker安碁	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz
C3E-30.000-12-1020-X-R	Aker安碁	CRYSTAL 30MHZ 12PF SMD	C3E	30 MHz
C3E-12.000-12-1015-R	Aker安碁	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz
C3E-25.000-8-1015-X-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-26.000-10-1015-X-R3	Aker安碁	CRYSTAL 26.0000MHZ 10PF SMD	C3E	26 MHz
C3E-16.000-8-2050-X1-R	Aker安碁	CRYSTAL 16MHZ 8PF SMD AEC-Q200	C3E X1	16 MHz
C3E-8.000-12-1020-R	Aker安碁	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz
C3E-12.000-12-3030-X-R	Aker安碁	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz
C3E-27.120-12-1010-R	Aker安碁	CRYSTAL 27.1200MHZ 12PF SMD	C3E	27.12 MHz
C3E-24.576-12-1010-R	Aker安碁	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz
C3E-16.000-12-1015-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-13.560-12-1530-X-R	Aker安碁	CRYSTAL 13.5600MHZ 12PF SMD	C3E	13.56 MHz
C3E-20.000-10-3050-X1-R	Aker安碁	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C3E X1	20 MHz
C3E-27.120-12-1020-X-R	Aker安碁	CRYSTAL 27.120MHZ 12PF SMD	C3E	27.12 MHz
C3E-16.000-9-1010-R	Aker安碁	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz
C5S-24.000-20-3030-X-R	Aker安碁	CRYSTAL 24MHZ 20PF SMD	C5S	24 MHz
C5S-12.000-16-5050-X-R	Aker安碁	CRYSTAL 12MHZ 16PF SMD	C5S	12 MHz
C5S-20.000-20-3050-X-R	Aker安碁	CRYSTAL 20MHZ 20PF SMD	C5S	20 MHz
C5S-12.000-16-3030-X-R	Aker安碁	CRYSTAL 12.0000MHZ 16PF SMD	C5S	12 MHz
C5S-8.000-12-2020-X-R	Aker安碁	CRYSTAL 8MHZ 12PF SMD	C5S	8 MHz
C6S-16.000-12-5050-X-R	Aker安碁	CRYSTAL 16MHZ 12PF SMD	C6S	16 MHz
C5S-8.000-18-3030-X-R	Aker安碁	CRYSTAL 8.0000MHZ 18PF SMD	C5S	8 MHz
C5S-8.000-16-3030-X-R	Aker安碁	CRYSTAL 8.0000MHZ 16PF SMD	C5S	8 MHz
C3E-16.000-8-50100-X1-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
C3E-16.000-8-50150-A-X3-R	Aker安碁	UWB CRYSTAL, 3225, 16.000MHZ, 8P	C3E Auto	16 MHz
C3E-8.000-8-10150-A-X3-R	Aker安碁	UWB CRYSTAL, 3225, 8.000MHZ, 8PF	C3E Auto	8 MHz
C3E-16.000-8-10150-A-X3-R	Aker安碁	CRYSTAL, 3225, 16.000MHZ, 8PF, S	C3E Auto	16 MHz
C3E-24.000-12-1050-A-X1-R	Aker安碁	CRYSTAL, 3225, 24.000MHZ, 12PF,	C3E Auto	24 MHz
C3E-8.000-8-1080-A-X1-R	Aker安碁	CRYSTAL, 3225, 8.000MHZ, 8PF, SM	C3E Auto	8 MHz
C3E-16.000-12-2050-A-X1-R	Aker安碁	CRYSTAL, 3225, 16.000MHZ, 12PF,	C3E Auto	16 MHz
C5S-24.000-18-20100-A-X1-R	Aker安碁	CRYSTAL, 5032 ,24.000MHZ, 18PF,	C5S Auto	-
