- 產品型號：63893455
- 頻率：50MHz
- 尺寸：7.0x5.0mm
- 產品介紹：物聯網6G晶振,4HF050000Z3BACTGI8,IDT低抖動Osc振蕩器,4HF050000Z4AACXGI8,7050mm貼片晶振，美國進口晶振，IDT艾迪悌晶振，4HF系列晶振，編碼為：4HF050000Z3BACT...
-

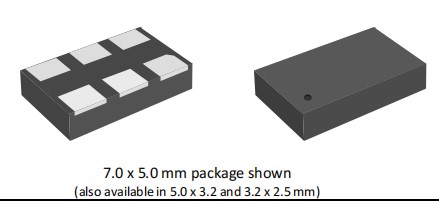

物聯網6G晶振,4HF050000Z3BACTGI8,IDT低抖動Osc振蕩器
.jpg)
.jpg)

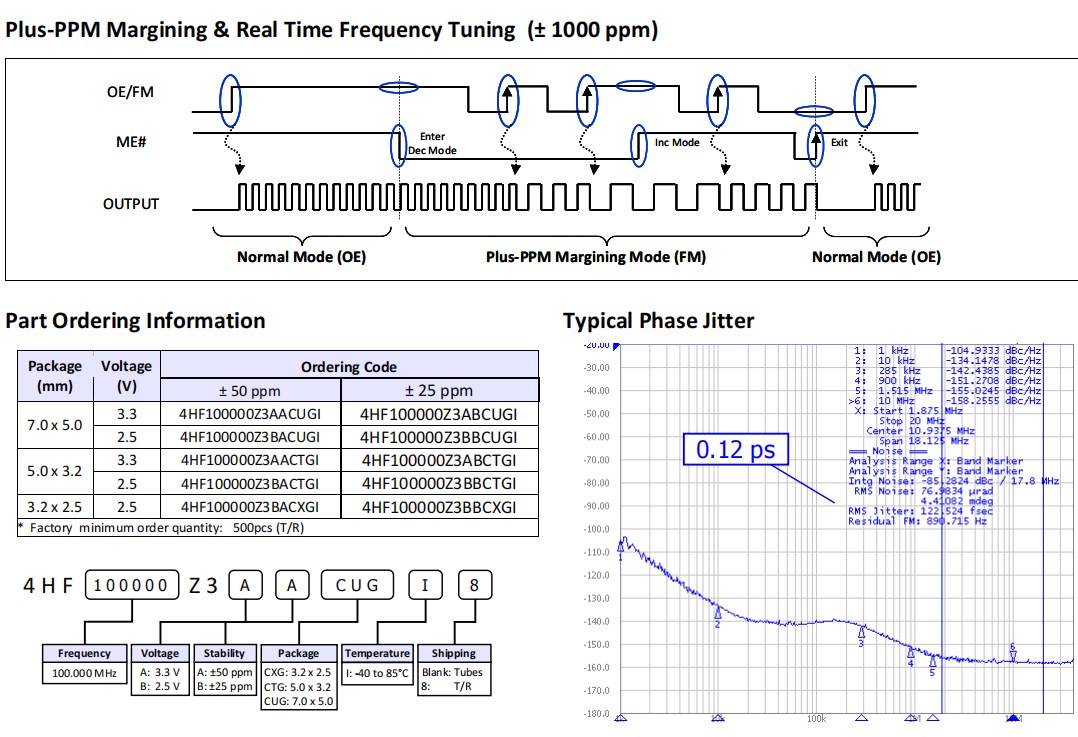

物聯網6G晶振,4HF050000Z3BACTGI8,IDT低抖動Osc振蕩器,4HF050000Z4AACXGI8,7050mm貼片晶振，美國進口晶振，IDT艾迪悌晶振，4HF系列晶振，編碼為：4HF050000Z3BACTGI8，頻率為：50.000MHz，LV-PECL輸出差分晶振，超低抖動Osc振蕩器+PPM邊緣MEMS振蕩器（LVPECL），小體積晶振尺寸：7.0x5.0mm，六腳貼片晶振，有源晶振， 石英晶振。4HF系列石英晶振超低相位抖動（100 fs）振蕩器，能夠在1ppm的步長中實現高達± 1000ppm的實時頻率邊緣。它是理想的應用程序需要極低的抖動和/或加PPM時鐘。從99.900到100.100 MHz的任何頻率都可以實時生成，而不需要使用y個外部XTAL或XO。應用于：通訊設備，無線網絡，藍牙模塊，物聯網，導航儀，機頂盒，光端機，安防設備及各種頻率控制設備上.
.jpg)
物聯網6G晶振,4HF050000Z3BACTGI8,IDT低抖動Osc振蕩器,4HF050000Z4AACXGI8,7050mm貼片晶振，參數表
| Parameter | 2.5 V | 3.3 V | Units | Conditions | ||||
| Specifications | Specifications | |||||||
| Min | Typ | Max | Min | Typ | Max | |||
| Supply Voltage (VDD) | 2.375 | 2.5 | 2.625 | 2.97 | 3.3 | 3.63 | V | |
| Output Frequency | 100 | 100 | MHz | |||||
| Frequency Stability | -50 | 50 | -50 | 50 | ppm | Includes supply voltage and temperature variation (-40 to 85°C), | ||
| reflow drift, and aging. | ||||||||
| Supply Current | 90 | 95 | mA | No load | ||||
| Enable/Disable Time | 1 | 1 | us | Guaranteed by design | ||||
| Input LOW level | 0.3VDD | 0. 7VDD | 0.3VDD | V | At OE pin | |||
| Input HIGH level | 0. 7VDD | VDD-1.8 | VDD-1.8 | V | ||||
| Output LOW level | 0.8 | VDD-1.1 | 1.5 | V | ||||
| Output HIGH level | VDD-1.0 | 1.6 | 2.3 | V | ||||
| Amplitude (VA ) | 0.75 | 0.75 | V | Single Ended output swing (Pk-Pk) | ||||
| Mid Level (VM) | VDD-1.3 | VDD-1.3 | V | |||||
| Rise Time (TR) | 300 | 250 | ps | Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char. | ||||
| Symmetry (SYM) | 48 | 50 | 52 | 48 | 50 | 52 | % | Worst case; measured at 50% of waveform |
| Phase Jitter | 0.12 | 0.12 | 1.875MHz to 20MHz, RMS; Measured Differentially (IEEE802.3-2005) | |||||
| 0.25 | 0.25 | ps | 12k to 20MHz, RMS; Measured Differentially | |||||
| Period Jitter | 2.5 | 2.5 | ps | RMS | ||||
| Cycle-to-Cycle Jitter | 20 | 20 | ps | 1,000 cycles, Peak | ||||
| Start-up Time | 10 | 10 | ms | Output valid time after power up, 25°C | ||||
| Aging | ± 5 | ± 5 | ppm | 25°C, 10 years | ||||
.jpg)

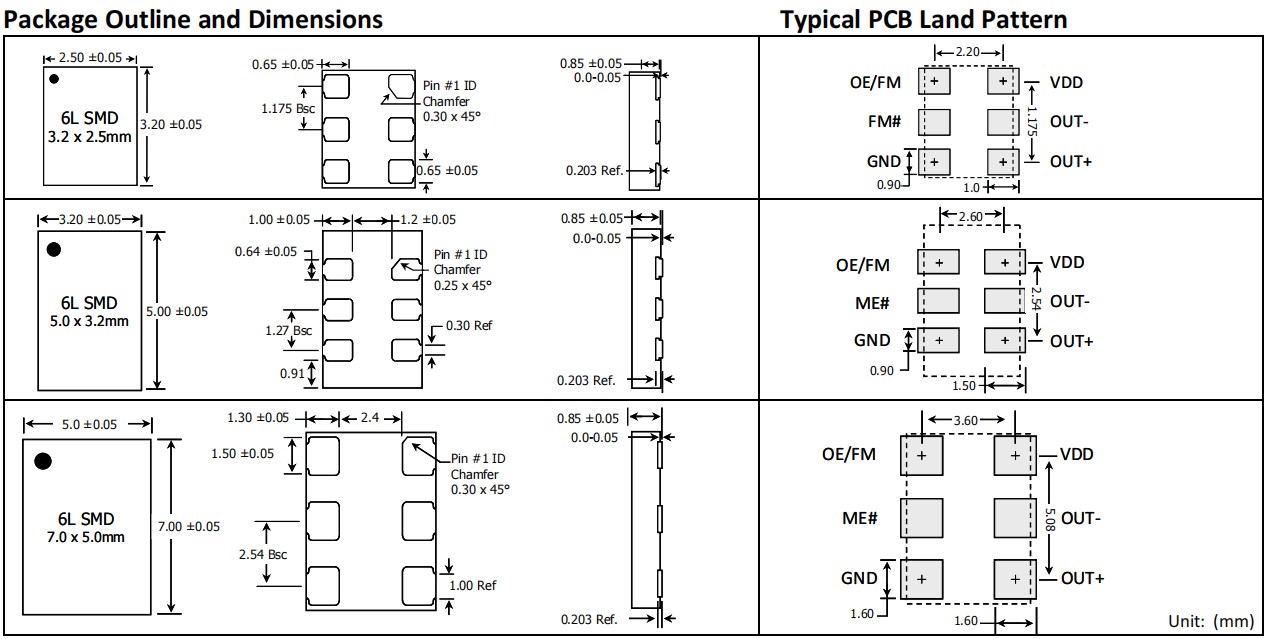

物聯網6G晶振,4HF050000Z3BACTGI8,IDT低抖動Osc振蕩器,4HF050000Z4AACXGI8,7050mm貼片晶振，尺寸圖
物聯網6G晶振,4HF050000Z3BACTGI8,IDT低抖動Osc振蕩器,4HF050000Z4AACXGI8,7050mm貼片晶振
產品特點：標稱頻率： 100。00 MHz（LVPECL）
任何Freq調諧（±1000 ppm）： 99.900至100.100 MHz
RMS相位抖動：0.1 ps典型的
頻率穩定性： ± 25 / ± 50 ppm
標準軟件包： 7050mm，5032mm，3225mm貼片晶振
內部MEMS諧振器不需要外部XTAL或XO
| 原廠代碼 | 品牌 | 參數 | 型號 | 頻率 |
| 4HF050000Z3AACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z4AACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF100000Z3AACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z4AACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF106250Z3AACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACTGI8 | 進口晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACTGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACTGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACTGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF125000Z3BACTGI | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACTGI8 | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACUGI | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACUGI8 | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACXGI | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACXGI8 | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
